A08L Freedom Electric Folding Wheelchair
Folding electric wheelchair that folds in literally a few seconds.
Many people want the convenience of a folding electric wheelchair so they can pop it into the boot of a car or store it when needed.
We are now delighted to introduce the Freedom Folding Electric Wheelchair which is;
- Joystick controlled
- Easy to fold in just a few seconds
- Easy to control and use both outdoors and indoors
- Easy to store in an apartment or where space is at a premium
- Light at just 21kg for the A06 model and 23kg for the A08 model
- Complete with anti tip bars as standard
The Freedom wheelchair comes with an airline approval certificate and they make a tremendous day chair for excursions or use on a cruise ship.
Product Description
Electric Wheelchair with lithium battery A08L
Electric wheelchair with lithium battery is composed of a very durable lightweight aluminum alloy, giving it a total weight of only 23.7 kg, but being capable of handling passengers weighing up to 160kg. The Standard Model A08L has 12-1/2″ rear wheels and 2 Brushless motors with imported electromagnetic brake to power them.
You will be amazed at how effortless it is to quickly and easily fold this chair to a compact size in one second. It is so easy! Once you sit on the Melebu ,you will know it is extremely durable and you will enjoy every minute of driving it.

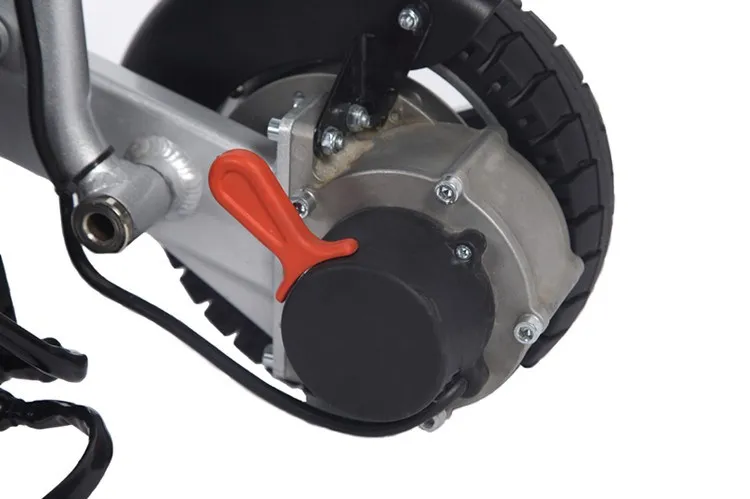

Motor
250w brushless motor with imported electromagnetic brake
Battery
24V10A lithium battery

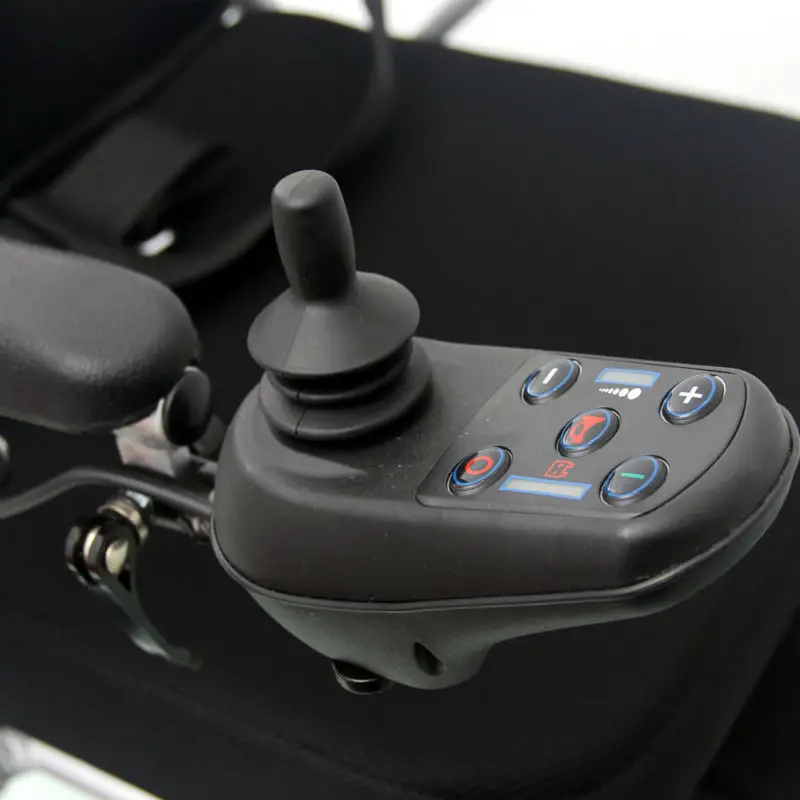

Controller
Programmable brushless controller controls driving and braking .
Specification
|
Model
|
A08L
|
||
|
Maximum weight capacity
|
350lbs/160kg
|
||
|
Maximum speed
|
Up to 4.5mph/7.2kmph
|
||
|
Ground clearance
|
2.5”/63.5cm
|
||
|
Turning radius
|
33.5”/85cm
|
||
|
Unfolded Dimensions(L*W*H)
|
39.4”/100cm*23.7”/60.3cm*35”/89cm
|
||
|
Folded Dimensions:(L*W*H)
|
25.2”/64cm*13.2”/33.5cm*29.1”/74cm
|
||
|
Rear wheels
|
12” rubber tire
|
||
|
Front wheels
|
8” pu tire
|
||
|
Suspension
|
Spring absorber
|
||
|
Drive train
|
Two-motor,rear-wheel drive
|
||
|
Braking system
|
Intelligent braking(electronic,regenerative disc brakes)
|
||
|
Standard electronics
|
40 amp,brushless motor controller
|
||
|
Battery charger
|
Off-board,2 amp
|
||
|
Per charge range
|
Up to 9.37 miles/15km
|
||
|
Battery size
|
24V 10Ah
|
||
|
Battery weight
|
3.55lbs/1.6kg
|
||
|
Base weight
|
52.5lbs/23.7kg
|
||
|
Seat dimensions (L*W)
|
18”X17”/45.7cmX43cm
|
||
You can lift this manually or use a car hoist as shown in these images. You can see the space this takes up in a standard family car – a Ford C Max.
