Horizontal Forced Air Drying Oven
Uses:
This new device is widely used for drying, baking, soluble wax, solidification and thermal treatment in the school laboratory, industrial and mining, food processing, biochemistry, agriculture, and pharmaceuticals industry for the samples.
Characteristics:

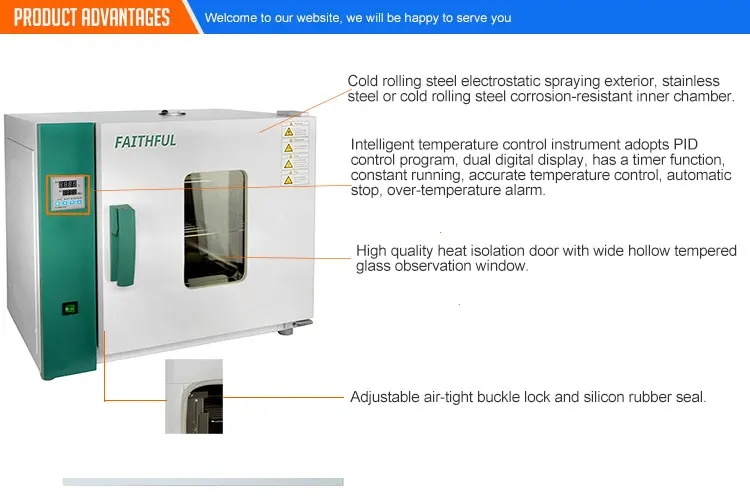

Cold rolling steel electrostatic spraying exterior, stainless steel or cold rolling steel corrosion-resistant inner chamber.
Intelligent temperature control instrument adopts PID control program, dual digital display, has a timer function (0-9999min), constant running, accurate temperature control, automatic stop, over-temperature alarm.
High quality heat isolation door with wide hollow tempered glass observation window.
Adjustable air-tight buckle lock and silicon rubber seal.
101 model with the low noise fan, the two sides heating air passage ensure high temperature evenness, suitable for high moisture samples of fast drying, forced air blower inlet structure of heat radiation, make the maximum working temperature is less than 50℃, the forced-draught fan can run long time.
Optional accessories: Shelves, RS485 interface, printer, recorder, external communication, remote control, program temperature control device, wireless SMS alarm, USB data storage.
Main parameters:
|
Model |
202-0A/ 202-0AB |
101-0A/ 101-0AB |
202-1A/ 202-1AB |
101-1A/ 101-1AB |
202-2A/ 202-2AB |
101-2A/ 101-2AB |
202-3A/ 202-3AB |
101-3A/ 101-3AB |
|
Voltage |
200-240V/100-120V |
220V/50Hz |
||||||
|
Tem. range(℃) |
RT+5~300℃ |
|||||||
|
Tem. Motion (℃) |
±1 |
|||||||
|
Chamber Size (mm) |
350×350×350 |
450×450×350 |
550×550×450 |
750×600×500 |
||||
|
Product Size (mm) |
660×530×580 |
660×530×580 |
760×530×680 |
760×530×680 |
860×630×780 |
860×630×780 |
870×670×1030 |
870×670×1030 |
|
Packing size (mm) |
760×620×660 |
760×620×660 |
820×620×760 |
820×620×760 |
960×720×860 |
960×720×860 |
1030×720×1120 |
|
|
Power(Kw) |
1.2 |
1.6 |
2 |
4 |
||||
|
Shelf load (Kg) |
15 |
|||||||
|
N.W.(Kg) |
45 |
44 |
55 |
54 |
60 |
58 |
110 |
110 |
|
G.W.(Kg) |
57 |
56 |
67 |
66 |
78 |
79 |
140 |
140 |
Note:A means intellectual temperature controller (point-meter control without A)
B representing working room made of stainless steel(fine cold rolling steel without B)
202 representing thermostatic drier
101 representing forced air drying oven
| WGL-30B | 310x310x310/ 30L | 220 V/110V | 0.8 | ± 1 | RT+10 ～300 | 550x575x780 | 0～9999min | R 8,999.95 | |
| WGL-45B | 350x350x350/ 45L | 1.2 | 630x600x820 | R 11,899.95 | |||||
| WGL-65B | 400x360x450/65L | 1.6 | 650×640×920 | R13,990.95 | |||||
| WGL-85B | 450x420x450/85L | 2 | 680x720x920 | R13,789.95 | |||||
| WGL-125B | 500x450x550/125L | 220V | 2.3 | 750x730x1020 | R17,999.95 | ||||
